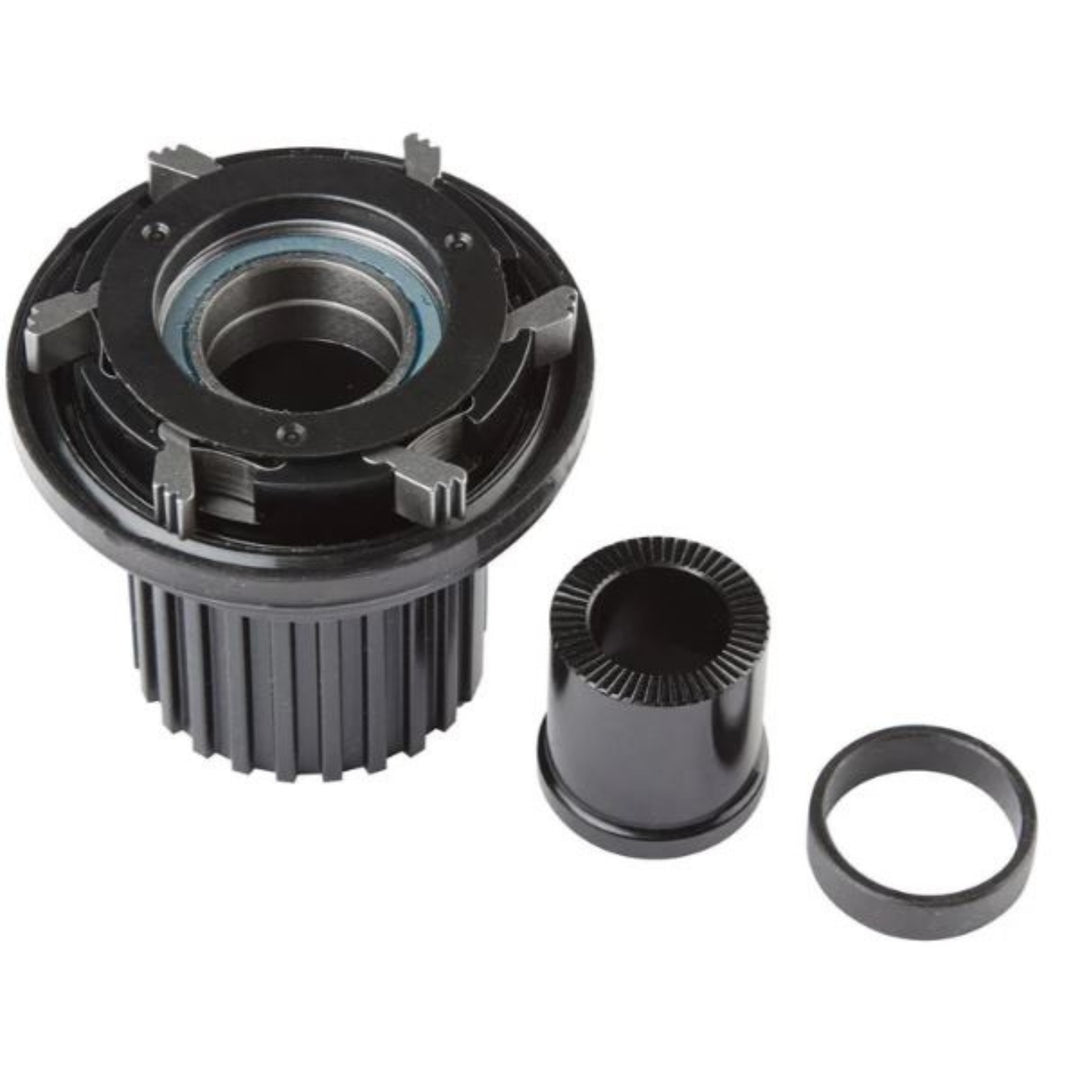

Nukeproof Horizon V2 Freehub Body 102t Shimano Microspline

Nukeproof Horizon V2 Freehub Body 102T- Shimano Microspline

The freehub has been manufactured to the same exacting standards as the freehub on your Nukeproof Horizon V2 hubs. It is only compatible with Nukeproof Horizon V2 Hubs.

Key Features:

• Hard wearing alloy construction
• 6 Pawl, 102 Points of Engagement.
• Options: Shimano HG (9,10,11 speed), Shimano Microspline (12 speed), SRAM XD (Eagle Cassettes)
• Hub seal and bushing is supplied with the freehub
• Microspline freehubs include the driveside end cap to allow you easy conversion from HG/ XD to Microspline. Conversely if you're converting from Micropline to XD or HG you'll require a new driveside end cap

Installation Instructions:

1. Remove your driveside end cap
2. Remove the freehub by simultaneously turning it (anticlockwise) and pulling. You shouldn't need to apply excessive force to get it off.
3. Check for damage- are the splines in good condition? is the pawl seal still in place?
4. Grease the hub ratchet ring (opposing side of the freehub)
5. Lightly grease the freehub pawls and springs and push and turn (anticlockwise) the freehub back in to the hub shell. Refit your driveside end cap.
