The parts have been manufactured to the same exacting standards as the parts on your Nukeproof frame. This is a replacement Nukeproof Bolt Thru Axle.
The axle includes a washer, designed to reduce pressure on the frame dropouts and transfer some tightening torque to the clamping load. This feature improves stiffness and helps prevent the axle from sticking, making removal easier.
All axles feature a 6mm hex on the non-drive side and an additional hex on the drive side, allowing for tightening and loosening from either side of the bike.
Key Features:
Genuine Ascend Components spare parts
AL7075 Aluminium
Apply a small amount of grease on your axle threads when installing
Hollow. 6MM hex head with back up drive side hex

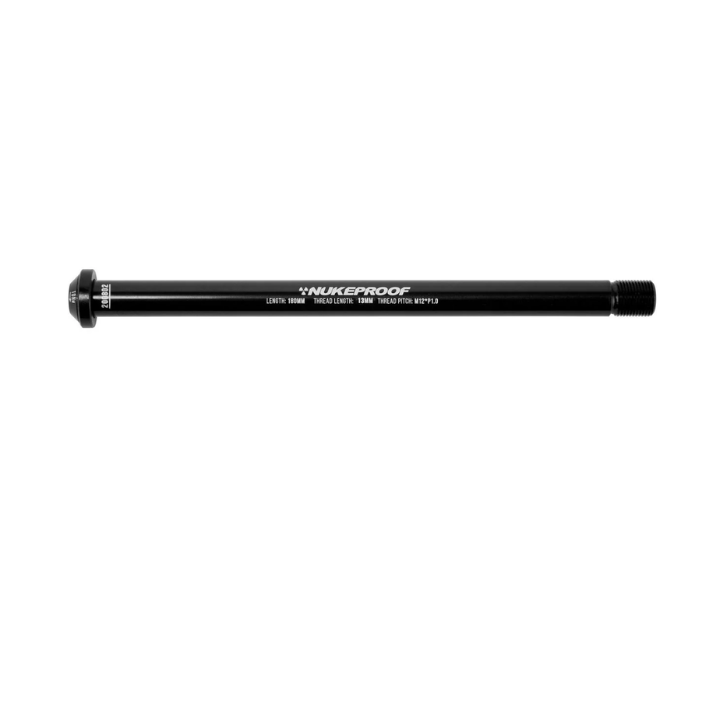

180MM | 13MM | M12 | P1.0 featured on the Nukeproof Mega Alloy 2020- Present Day/Carbon 2021- Present Day, Giga 2021- Present Day

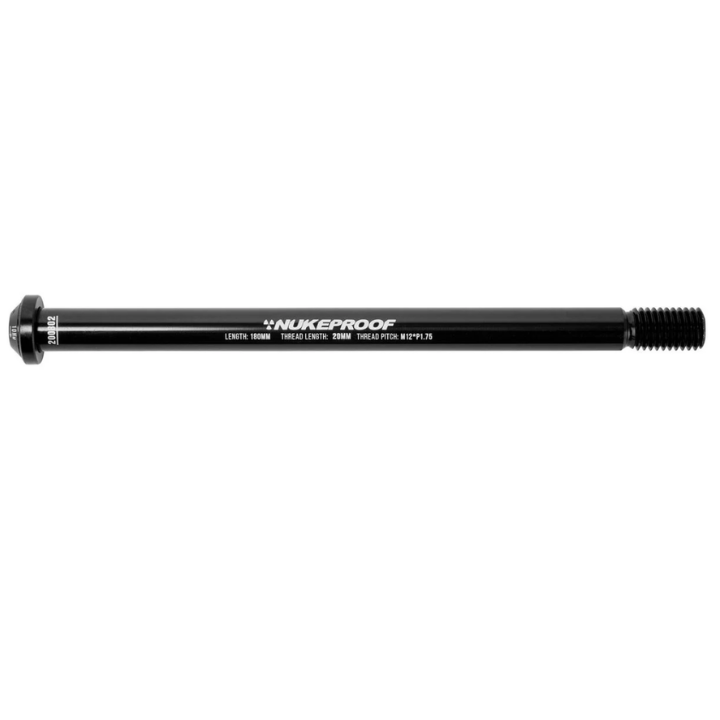

180MM | 20MM | M12 | P1.75 featured on the Nukeproof Reactor Alloy/ Carbon 2020- Present Day

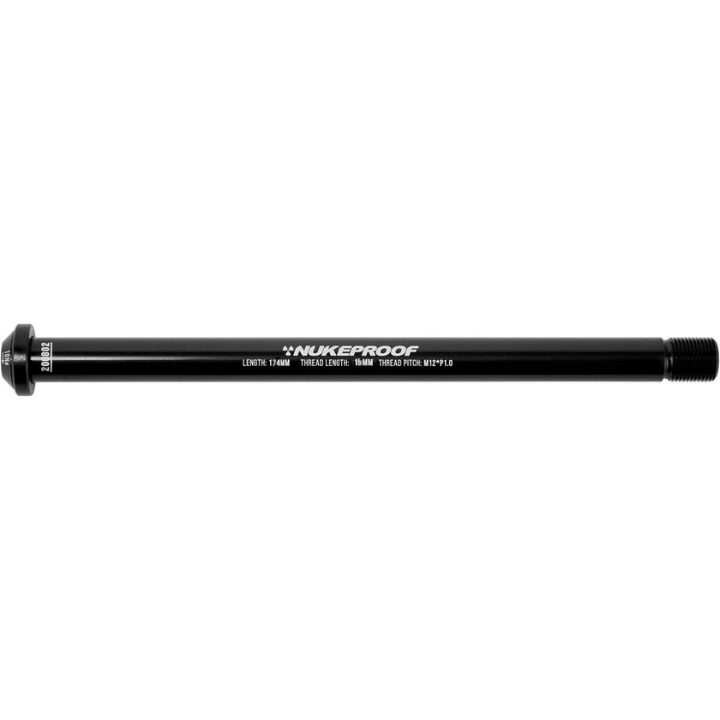

174MM | 16MM | M12 | P1.0 featured on the Nukeproof Scout 2022-Present Day
