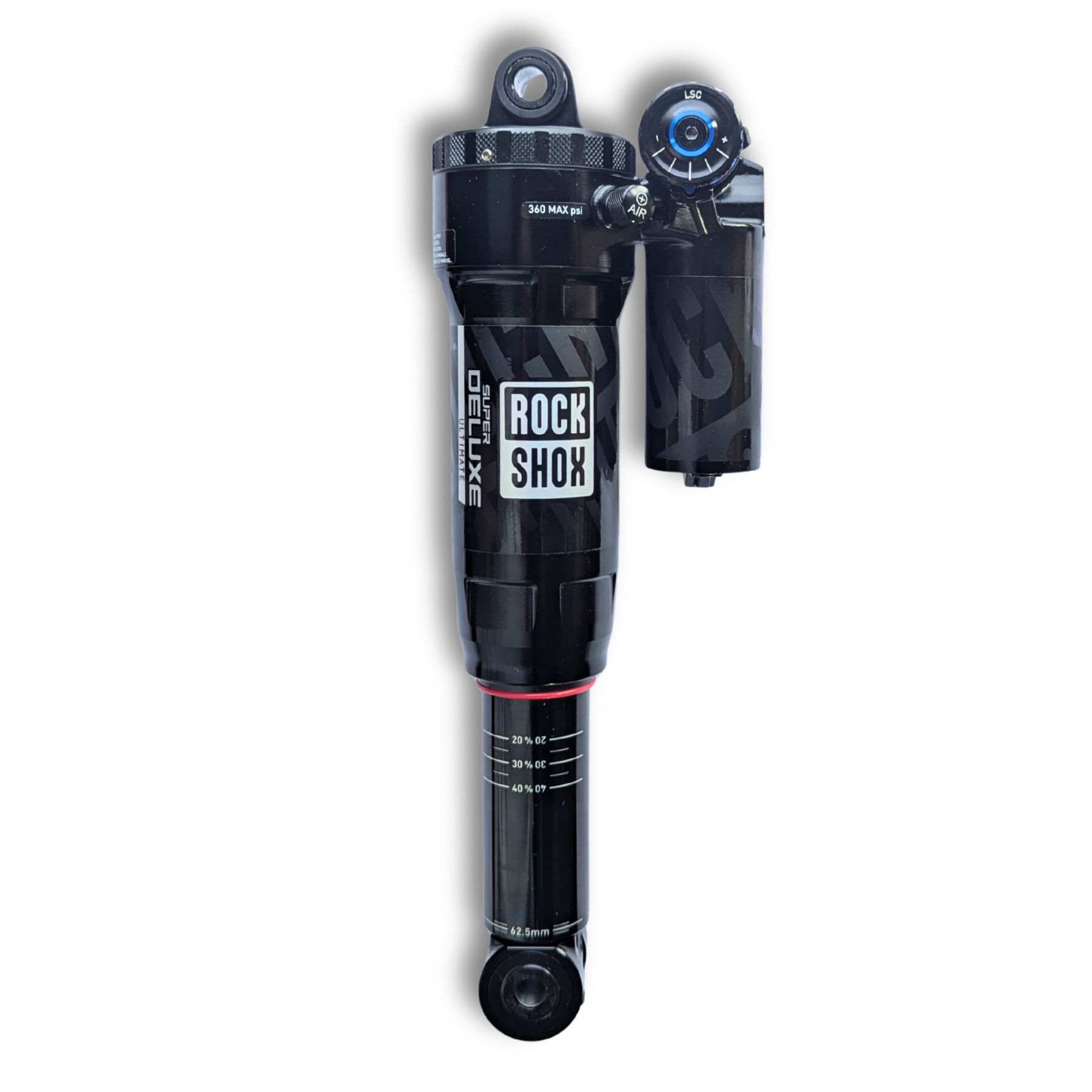

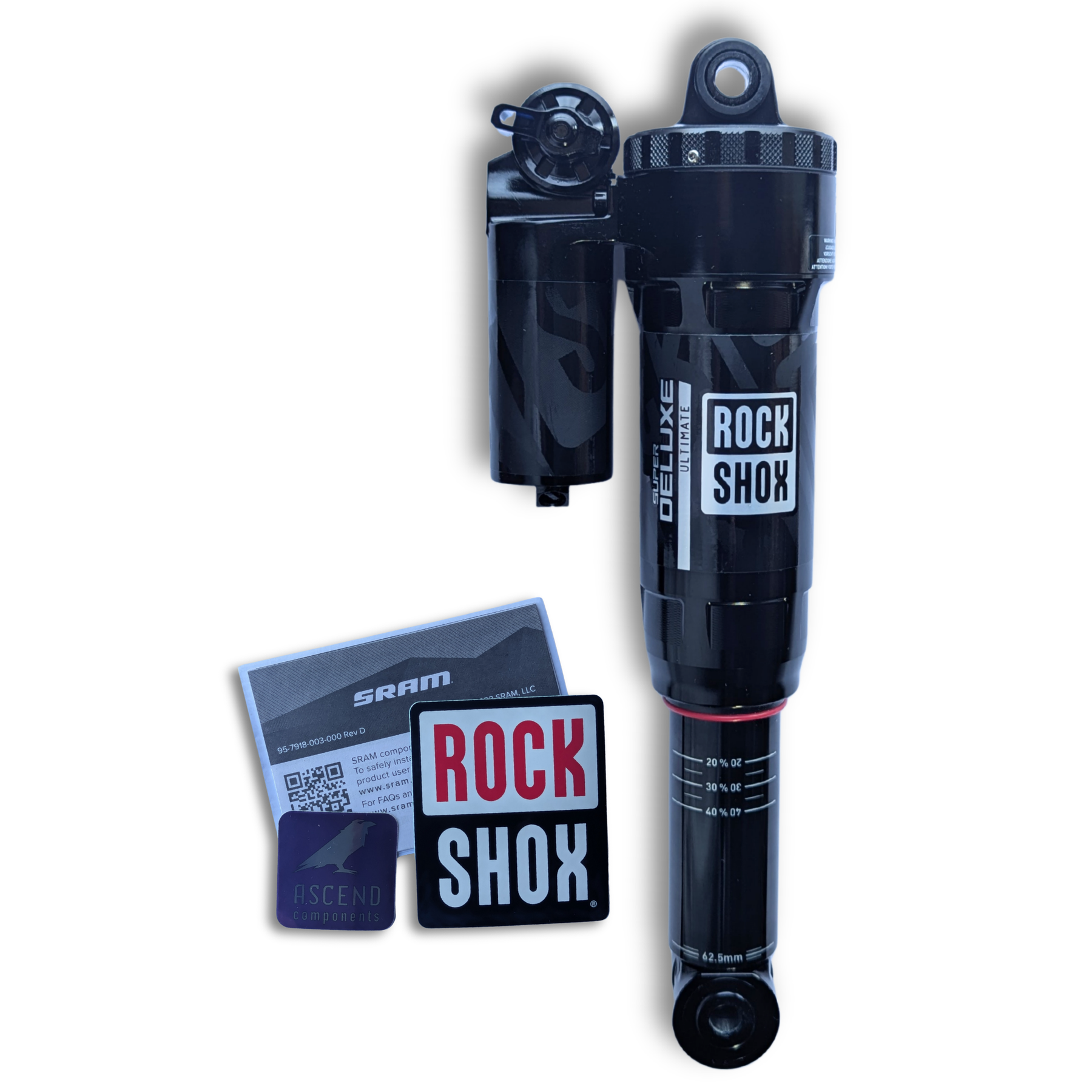

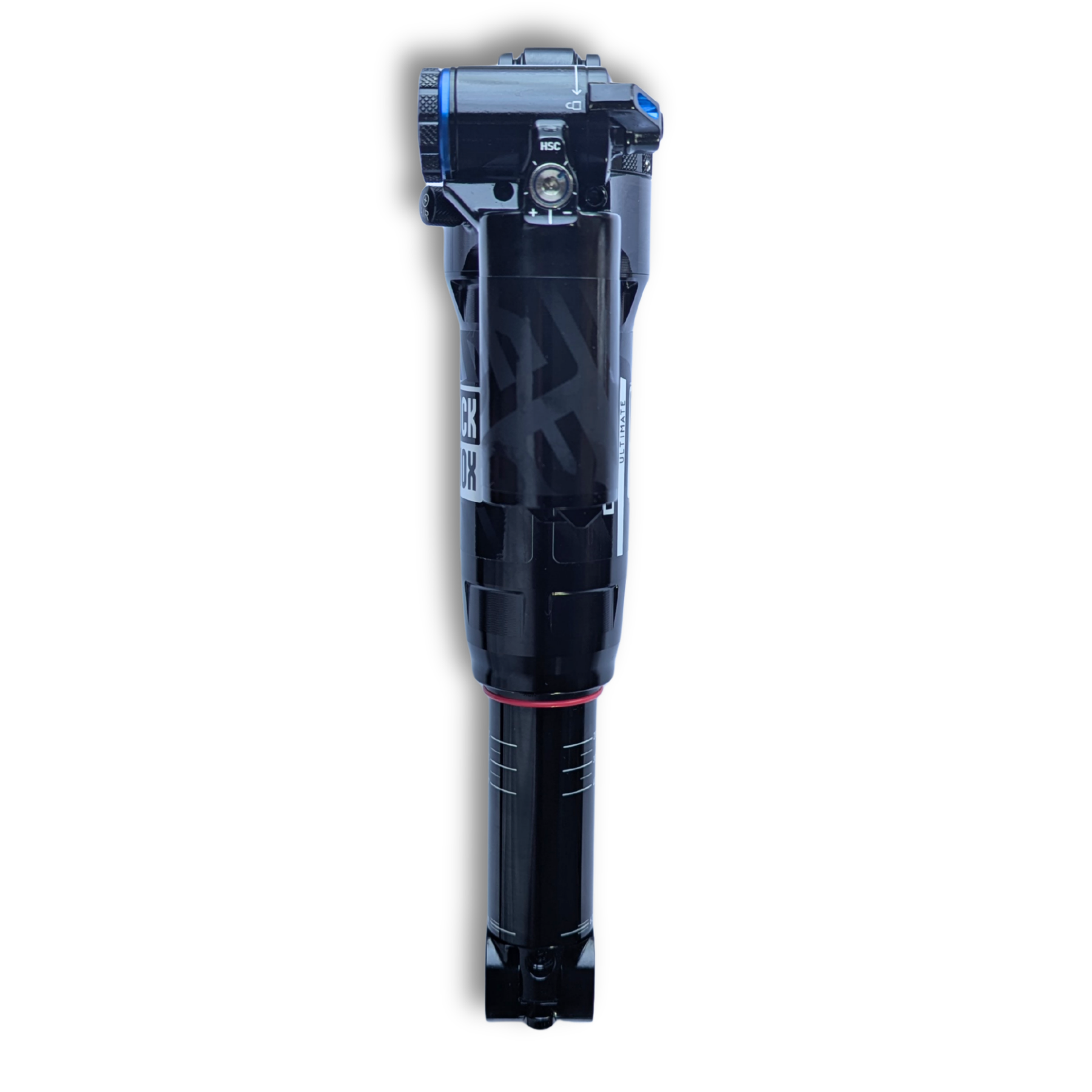

RockShox Super Deluxe Ultimate Rear Shock – 230 x 62.5mm – C1

Brand-new genuine RockShox original-equipment (OE) Super Deluxe Ultimate rear shock in a 230 x 62.5mm configuration, featuring a DebonAir Linear air spring and RC2T damper with external rebound, Open/Firm threshold and independent high- and low-speed compression adjustment.

Compatibility is specification-specific. Rear shocks are not interchangeable based on eye-to-eye and stroke dimensions alone. Before ordering, confirm the dimensions, mount type, mounting-hardware widths and bolt diameters, and damper tune against the bicycle or frame manufacturer's specification.

Specification

• Model: RockShox Super Deluxe Ultimate
• Eye-to-eye x stroke: 230 x 62.5mm
• Air spring: DebonAir Linear
• Damper type: RC2T
• Damping adjustments: External rebound, 2-position Open/Firm, high- and low-speed compression adjustment
• Rebound tune: Linear
• Compression tune: L1
• Lockout force: 320
• Rebound adjustment: 15 clicks
• Volume reducers: 0 Negative / 2 Positive
• Check tune: 0 – Light
• Shaft-side mount: Standard eyelet, 25x8 (Accepts any standard hardware)
• Body-side mount: Bearing eyelet, 30x8
• Maximum air pressure: 360 PSI
• E-bike approved: Yes
• Shock body: Black
• Decals: Matte Polar Foil
• Decal orientation: A
• Tune / OE specification: LNL1 32SB C1
• SRAM model code: RS-SDLX-ULT-C1
• SRAM manufacturer part number: 00.4118.294.412
• Condition: Brand new OE stock

OE Stock

This is brand-new genuine RockShox original-equipment stock and may be supplied in plain or bulk packaging rather than consumer retail packaging.

Please check the SRAM manufacturer part number, dimensions, mounting arrangement, hardware sizes and tune carefully against your original shock or frame specification before ordering.
